How to detail strip a VP9 (Part 4 of 4) 1.0

No permission to download
Part 5 - Slide Disassembly

Step 1

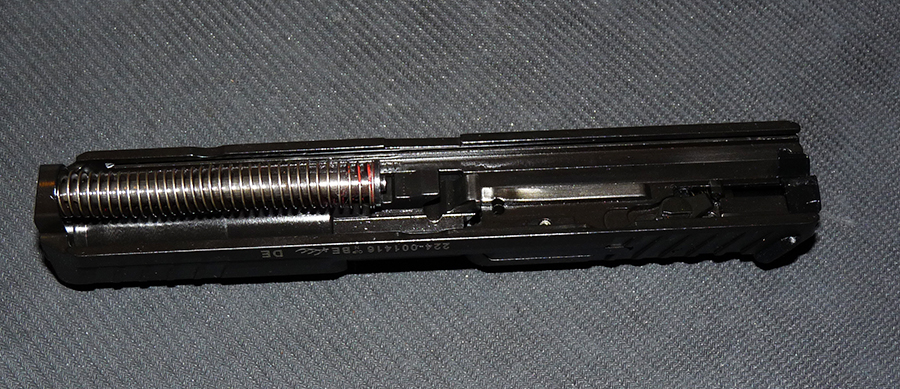

• Remove the slide from the frame

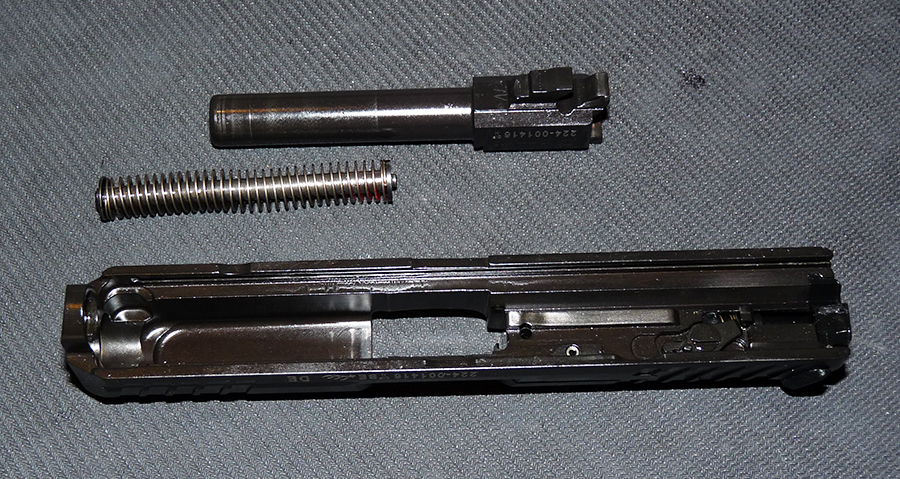

• Remove the Recoil Spring Assembly and Barrel from the slide





Step 2

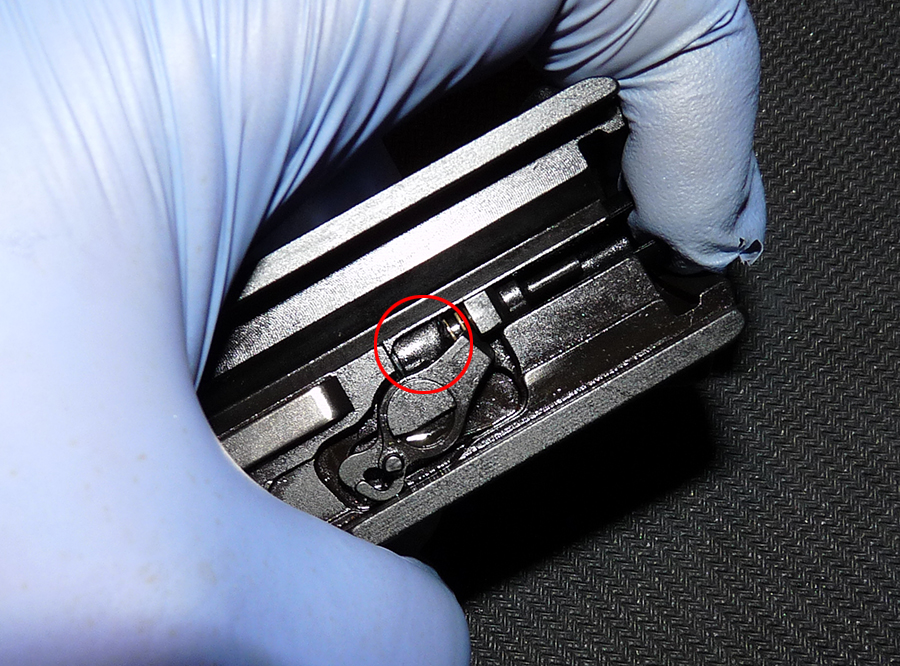

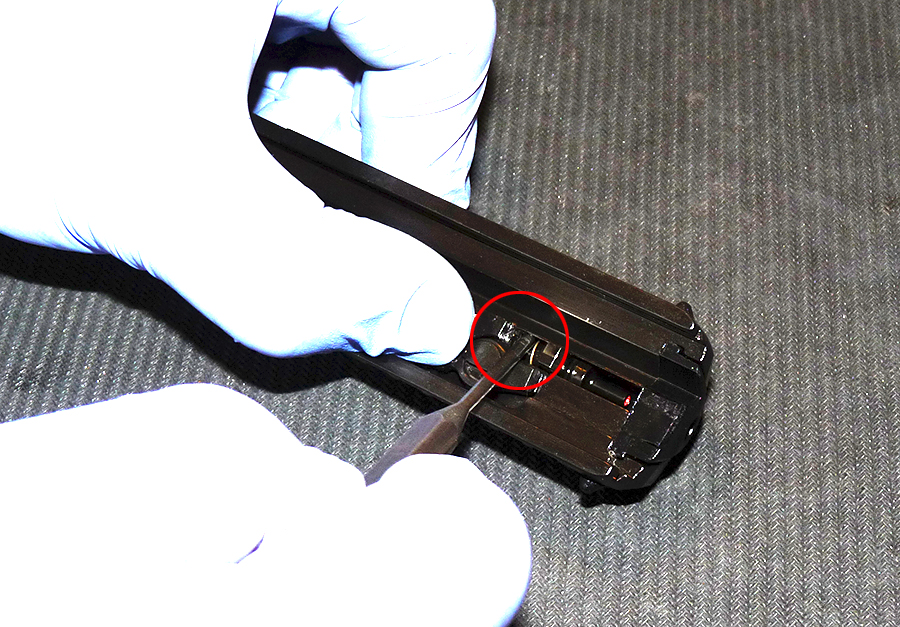

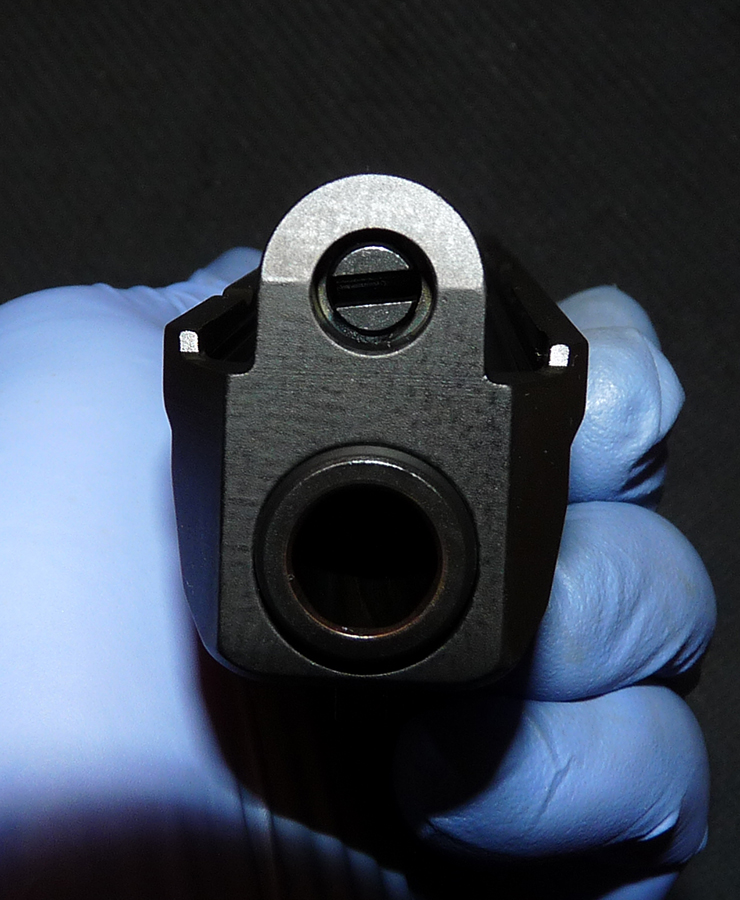

• Locate the Support Sleeve (circled in Red) and, using a small, flat-tipped screwdriver, compress the Support Sleeve (push it towards the left in the picture). Notes: using the blade of a small, flat-tipped screwdriver minimizes the chance of deforming the Support Sleeve

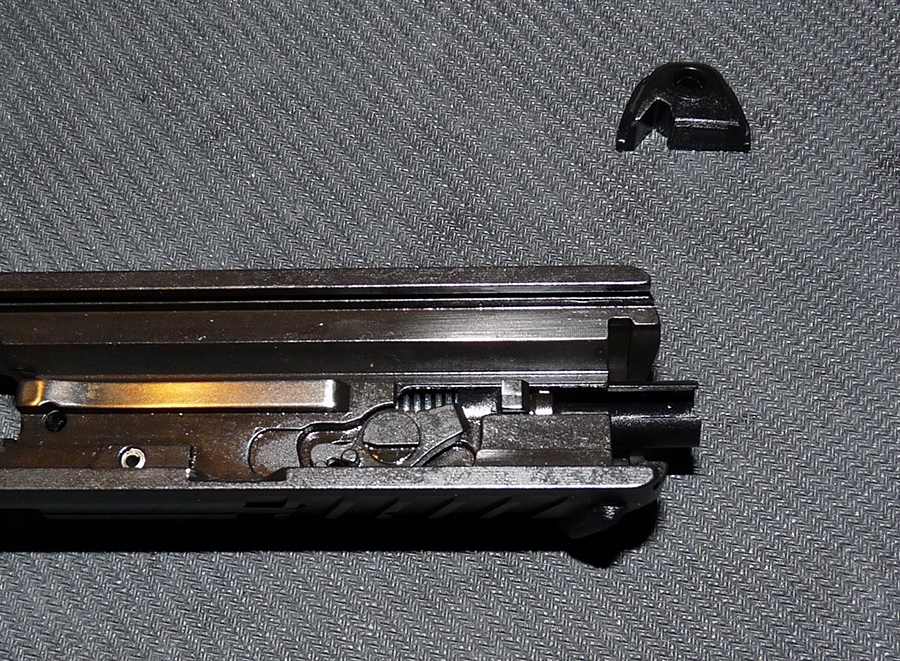

• While compressing the Support Sleeve, slide the Striker Slide Plate up to remove it from the slide







Step 3

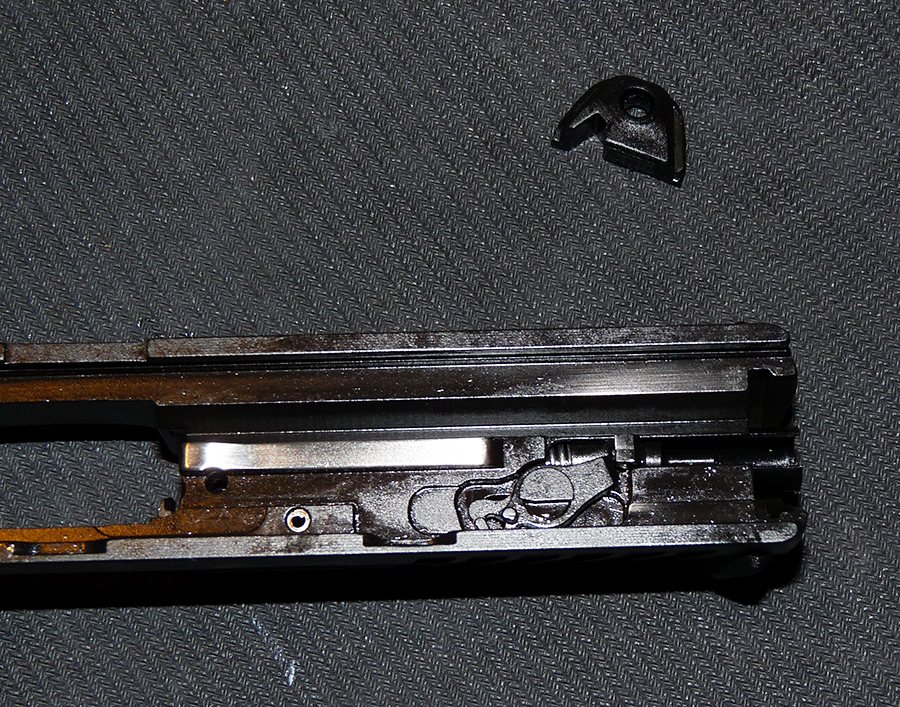

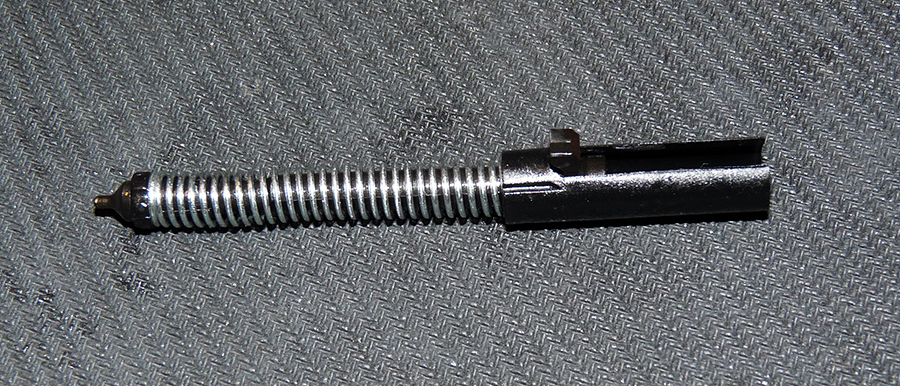

• Remove the complete Firing Pin Assembly from the slide

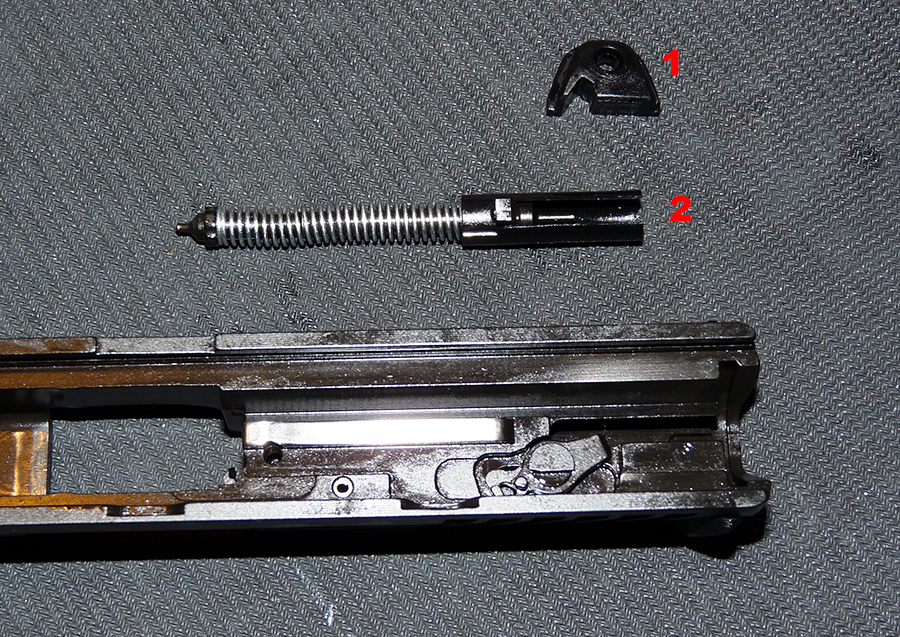

Parts identification
1. Slide Plate
2. Firing Pin Assembly






Part 6 - Slide Reassembly

Step 1

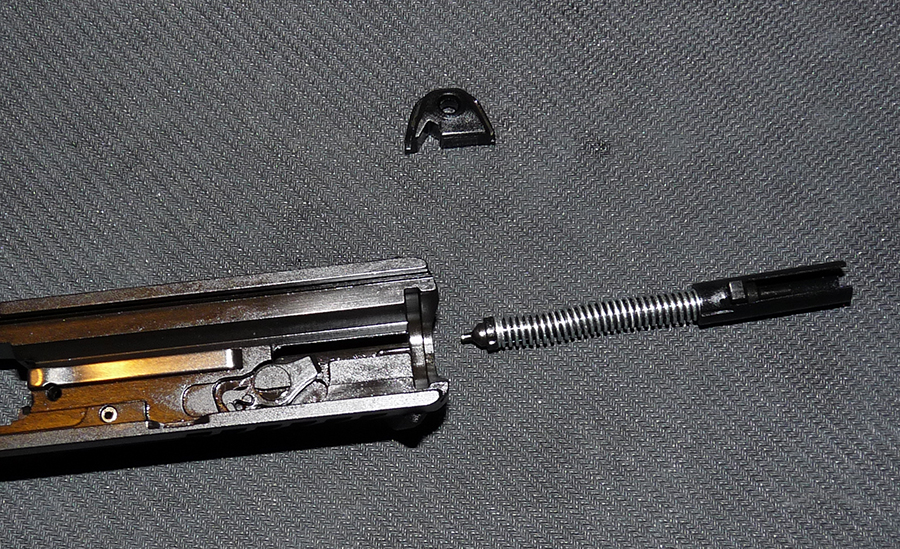

• Insert the Firing Pin Assembly into the slide as shown





Step 2

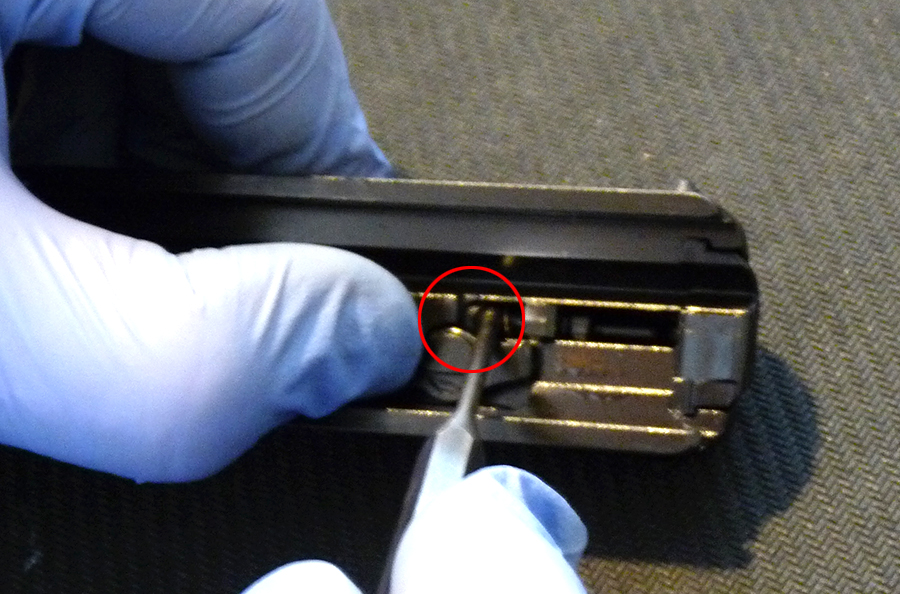

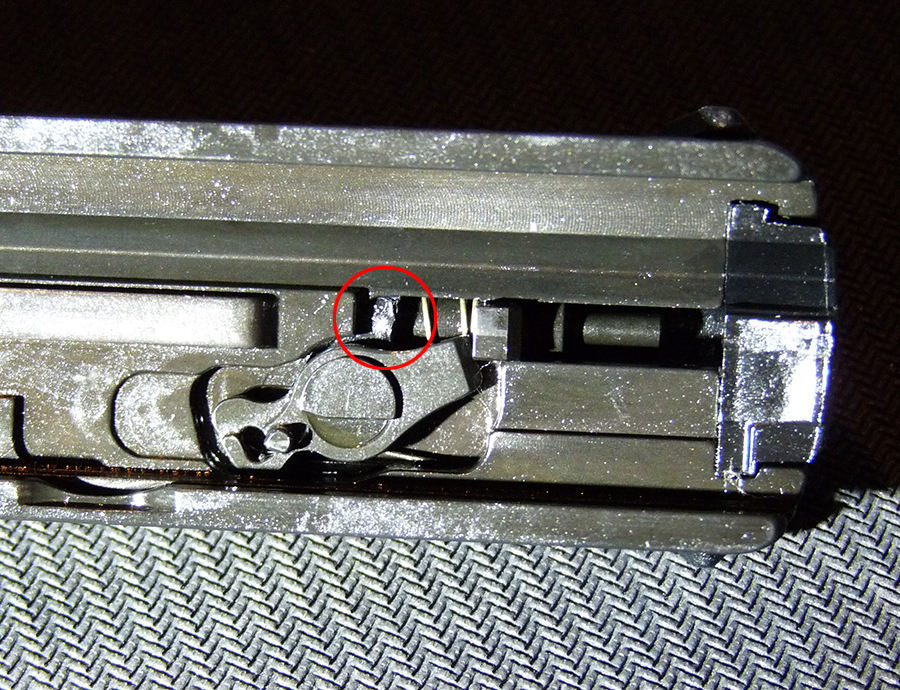

• Locate the Support Sleeve (circled in Red) and, using the blade of the flat-tipped screwdriver, compress it
• Install the Slide Plate by sliding it into the groove on the slide





Step 3
• Insert the Barrel and Recoil Spring Assembly

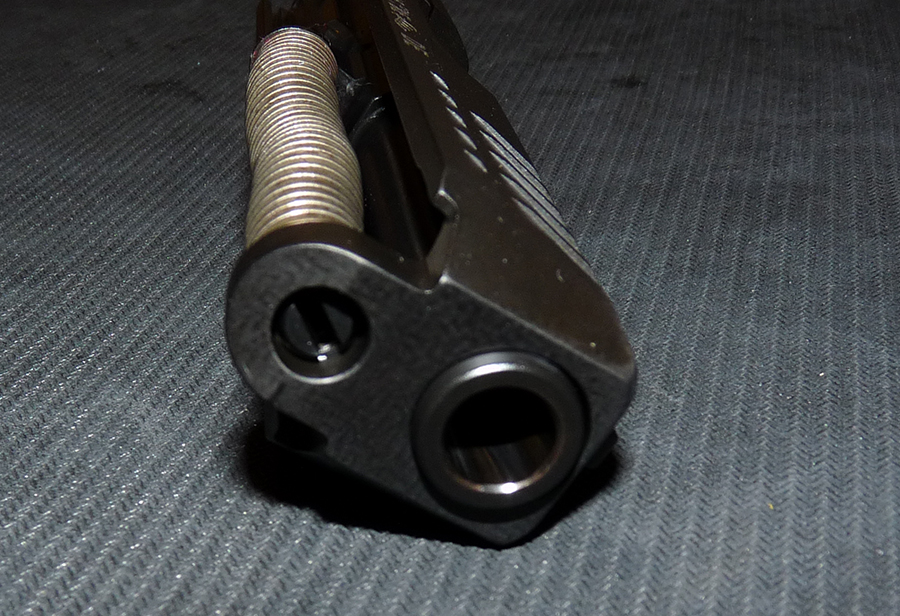

• Make sure the Recoil Spring Assembly is installed correctly (note the orientation of the Recoil Spring Assembly)





Step 4
• Install the slide. Make sure to push down on the rear of the slide when it reaches the rear of the frame
• Flip the Disassembly Lever to lock the slide in place
