I came home from work today and right to the shop I went (thanks to the shipment of flats coming in today from RTG) Prep’d the flat, rolled it, pressed in the barrel, head spaced it, welded the flat up, fit the trunnion and barrel in, then welded up the shroud. 4 1/2 hours later here we are......my prototype MP5SD-Hybrid.....all that I have left to do is fit up the magazine release, put in the paddle release, weld on the shelf, dress up the welds and shoot it! I should have live fire testing by this time tomorrow....

I have pictures of it with a Gemtech
Multi-Mount and a Gemtech Lunar 9 in the short configuration....thoughts??


Attachments

  • C114944B-30AB-4EF9-80C8-32305889DA29.jpeg
    160.7 KB · Views: 26
  • 88A61208-23A2-4257-9CE8-910DCB8FC70A.jpeg
    148.7 KB · Views: 26
  • C94CBE9B-B553-4CF5-BCCE-2745D1272C46.jpeg
    154.7 KB · Views: 25
  • 59CBF76D-AB4C-47B5-BE2F-D70499FB5B44.jpeg
    142.3 KB · Views: 24
  • 5E28AD0F-5099-45F4-91BA-FE8198B32BD5.jpeg
    139.8 KB · Views: 23
  • 47187205-E5DC-490E-8A00-7941D520AA48.jpeg
    141 KB · Views: 23
  • B5797469-F1F4-4574-A9EB-2D6C25F1BD53.jpeg
    160.7 KB · Views: 27
  • D2EB86AC-B991-4657-ADDA-E044B779D332.jpeg
    129.8 KB · Views: 26

Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio
Not to sound like an ass but how do I make it look easy? Lol

Just wait til I get it done and put it side by side with my TPM SDK suppressor.


Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio
Just finished testing and here are the results. The true SD ported Barrel makes a touch less noise BUT produces more gas to the face vs the Hybrid. I have another suppressor coming to try on said Hybrid and in theory it should be less noise as the suppressor is bigger in diameter, meaning more volume for gas to expand.



Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio

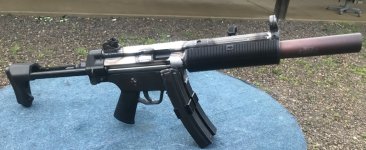

Used my old tried and true Gemtech Multi-Mount for the demo. I have another suppressor coming that is bigger in diameter so it should make less noise as it will allow for better expansion. We will see.


Attachments

  • 9FC60D48-F9FC-4298-97CA-71859DE93C66.jpeg
    124.6 KB · Views: 3
  • 1912721B-E6AD-46C6-839D-5FECA081B291.jpeg
    158.2 KB · Views: 3
  • 0FE37FEF-9876-485A-85F1-A778192D7349.jpeg
    241.6 KB · Views: 3
  • 63F5F772-72E9-4CA1-840E-7339E806356D.jpeg
    207.1 KB · Views: 3

AGG

Staff member
Feedback: 3 / 0 / 0
Joined
Nov 11, 2020
Posts
5,492
Location
Alabama
Just finished testing and here are the results. The true SD ported Barrel makes a touch less noise BUT produces more gas to the face vs the Hybrid. I have another suppressor coming to try on said Hybrid and in theory it should be less noise as the suppressor is bigger in diameter, meaning more volume for gas to expand.

Most excellent. ;)

Tony


Manofdusk

Well-known member
Feedback: 1 / 0 / 0
Joined
May 20, 2021
Posts
407
I came home from work today and right to the shop I went (thanks to the shipment of flats coming in today from RTG) Prep’d the flat, rolled it, pressed in the barrel, head spaced it, welded the flat up, fit the trunnion and barrel in, then welded up the shroud. 4 1/2 hours later here we are......my prototype MP5SD-Hybrid.....all that I have left to do is fit up the magazine release, put in the paddle release, weld on the shelf, dress up the welds and shoot it! I should have live fire testing by this time tomorrow....

I have pictures of it with a Gemtech
Multi-Mount and a Gemtech Lunar 9 in the short configuration....thoughts??
Looks good. My second SD build was an SD-K hybrid.


Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio
Wrapping up more range testing....I tried the following locking pieces in the MP5SD-Hybrid and found that the 100 and 115 degree are almost identical in preformance. The 80 degree gave very weak ejection. The following video is with a 100 degree locking piece running 147 grain WWB ammunition. I’m pleased with the results.




Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio
I now have 600 rounds flawlessly through the MP5SD-Hybrid. I shot it next to a friend using a 9mm pistol with a suppressor and the same ammunition, the results were identical. That was a good reference. I used a couple other 3 lug suppressors on it and they made a little less noise, then again that poor
Multi-Mount has roughly 20k-25k of 9mm out of it so I’m sure it’s lost it’s perfect suppression.


Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio
The Hybrid was engraved and got some color last night. I’ll put it together after work today and zero it.

Trying out the Aluma-Hyde finish from Brownell’s. I’m curious as to how well it holds up.


Attachments

  • 59437B6B-A591-4A5C-85F7-2B181BA785FC.jpeg
    100.1 KB · Views: 11
  • 46E21F48-7816-43BC-ADA1-3F0A4F437417.jpeg
    112.8 KB · Views: 14
  • F699CF52-6924-4066-A657-81F84DAF9F5D.jpeg
    202.9 KB · Views: 13
  • 0513CC7D-7C0B-4184-832D-53CF0394EEA3.jpeg
    104 KB · Views: 12
  • 570C307B-4B3D-4886-8151-83EF19749600.jpeg
    127.7 KB · Views: 13

AGG

Staff member
Feedback: 3 / 0 / 0
Joined
Nov 11, 2020
Posts
5,492
Location
Alabama
The Hybrid was engraved and got some color last night. I’ll put it together after work today and zero it.

Trying out the Aluma-Hyde finish from Brownell’s. I’m curious as to how well it holds up.

Excellent work--- that color is reminiscent of the early HK black finish (circa, 1974- early 1976). ;)

Tony


Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio
I'm looking forward to getting off work so I can go home and put it all back together. I'll post pics once I do.....I also need to put it on paper and actually zero it. That being said I put the rear sight on, cranked it to what looked like it was centered and I was shooting clay birds off the berm at 50 yards consistant......I'd say it shoots pretty decent. I'm waiting for suppressors to come in so I can continue testing out which would be the best one for the Hybrid project (and most cost effective for the comsumer)


Grease Gunner

Well-known member
Feedback: 2 / 0 / 0
Joined
Nov 22, 2020
Posts
512
Location
Tuscarawas County Ohio

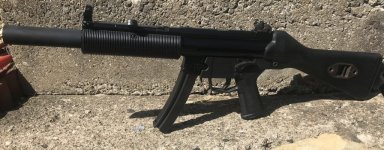

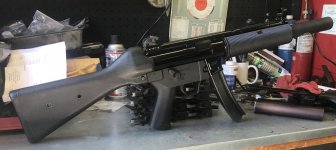

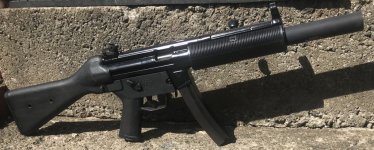

Here it is all back together. Now let’s see if I can make it to the range tonight to try it.


Attachments

  • 41B5AFD2-1307-4EF6-B28A-254AC6DEA51E.jpeg
    116.1 KB · Views: 14
  • 13906CEF-4500-428F-8DC8-3D958A51134B.jpeg
    93.7 KB · Views: 14
  • D2F2D8C4-99F4-4F6E-A554-3125E576A591.jpeg
    148.6 KB · Views: 13
  • A5E5DB0C-2E4F-495F-BFD8-AEA4B50F4B45.jpeg
    151 KB · Views: 13
